Winegard HD7698P vs Antennacraft Y10-7-13 and PR 9032


This comparison focuses on the combined VHF/UHF reception of the Winegard HD7698P, versus comparative standalone VFH and UHF antennas.

HD7698P Y10-7-13 PR9032
HD7698P Y10-7-13 PR9032

The HD7698P is a relatively new antenna covering both the Hi-VHF channels (7-13) as well as the UHF band.  I chose the Y10-7-13 to compare its VHF sensitivity to because the Y10-7-13 is just about as good as you can get for multipath prone fringe reception, without blowing big $$$ and/or importing.  I chose the PR9032 to compare UHF sensitivity to because after comparing the PR9032 to the 91XG intuition told me the HD7698P's performance would most likely match the 9032.  Turned out to be the case.

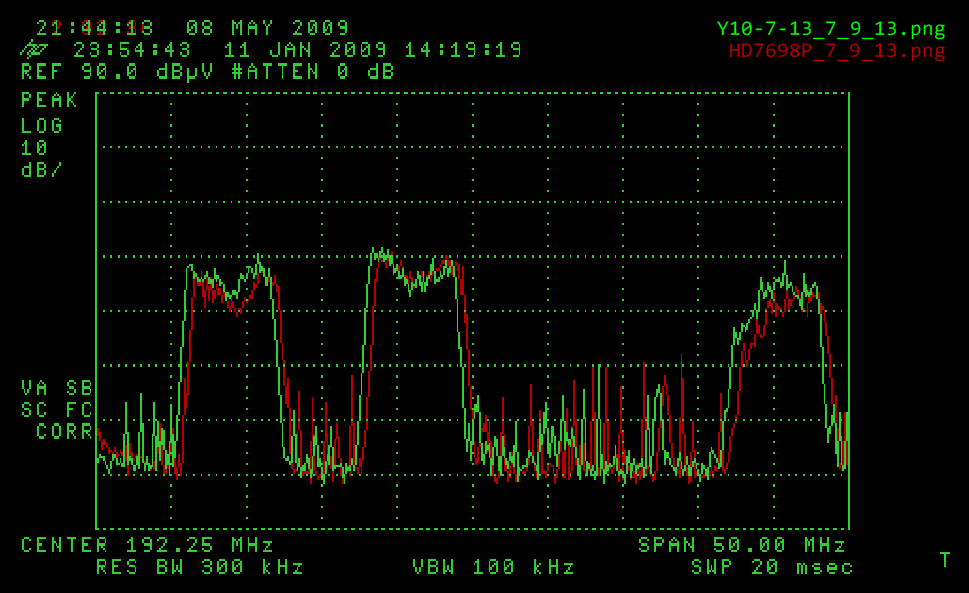

Channels 7, 9, 13:

(sorry about that frequency drift)

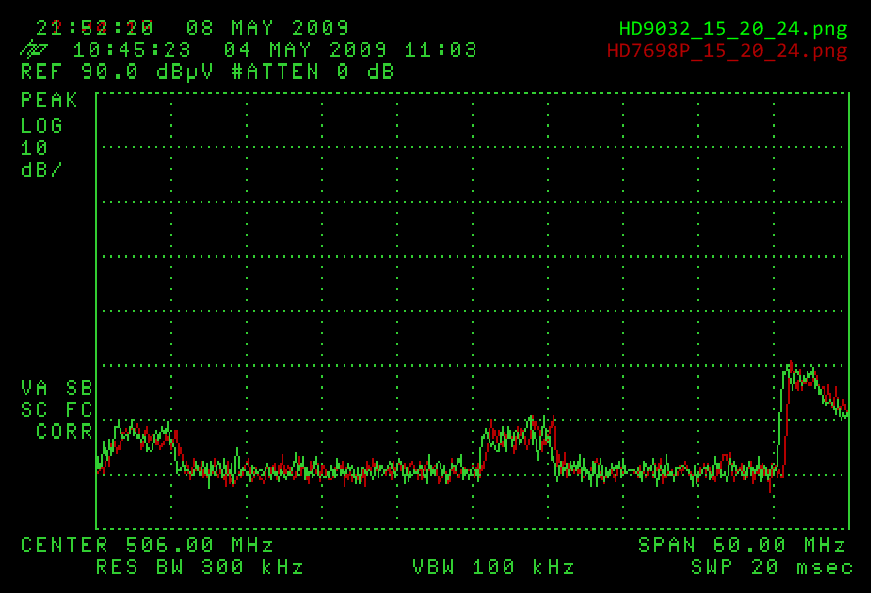

Channels 15, 20, and 24:

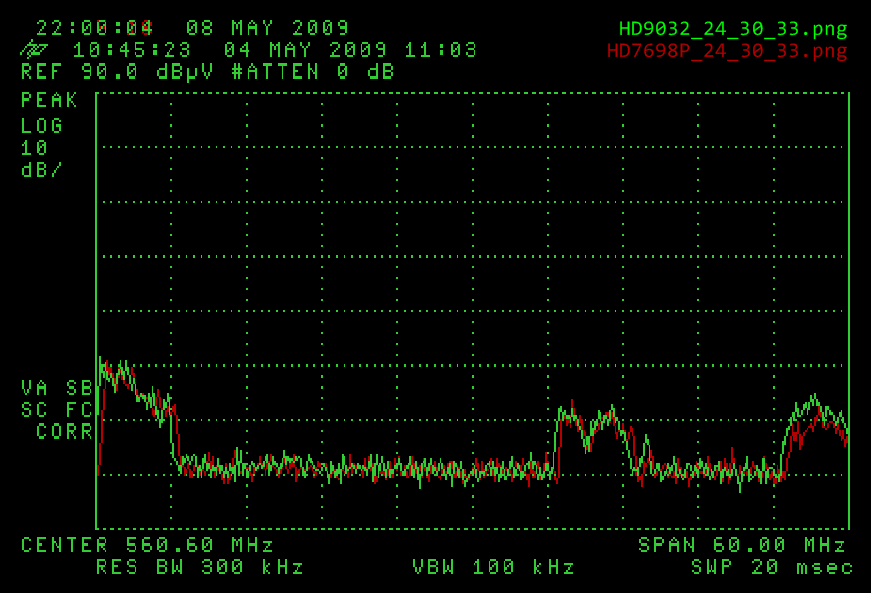

Channels 24, 30, and 33:

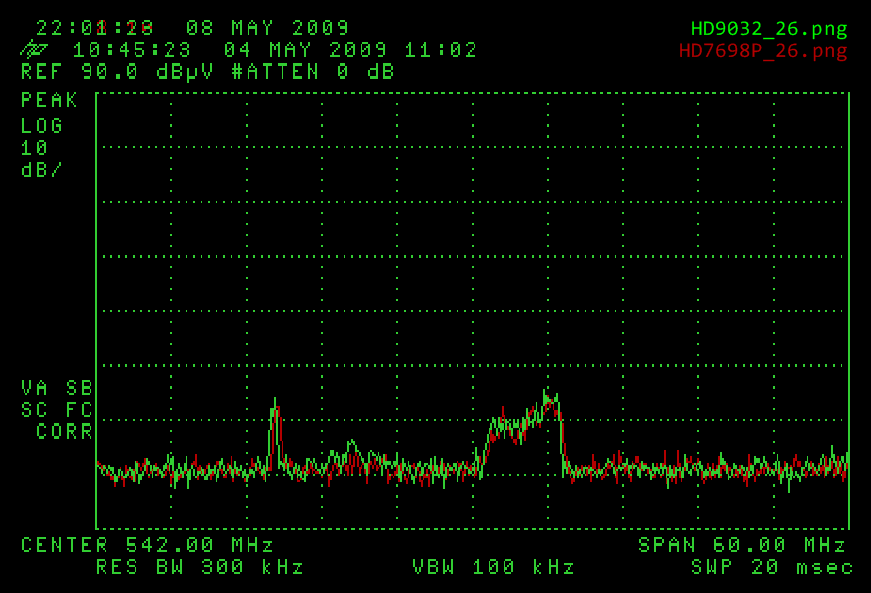

Channel 26:

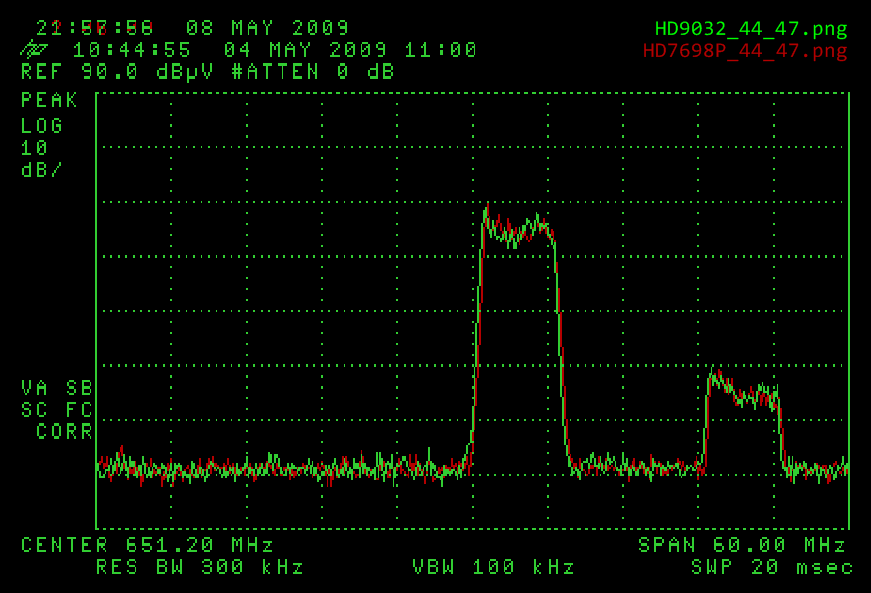

Channels 44 and 47:

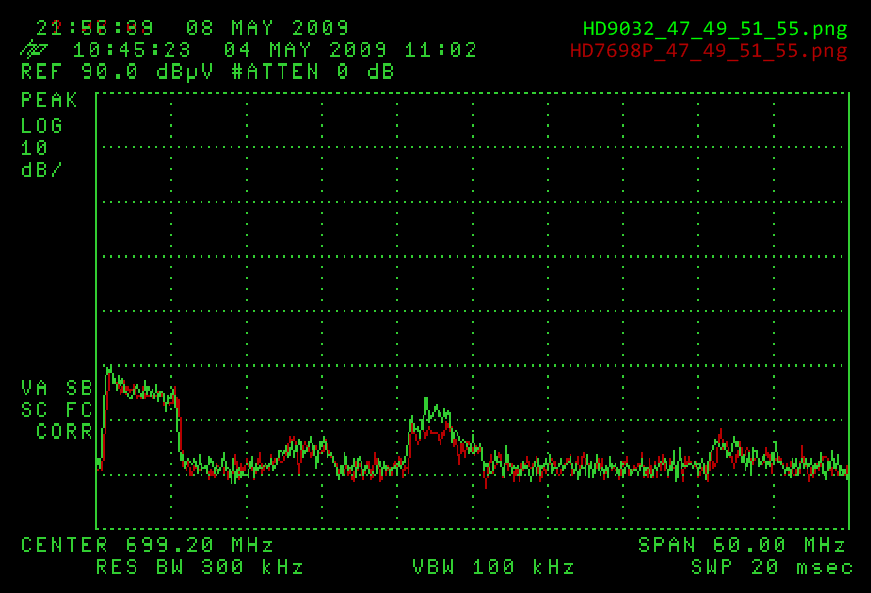

Channels 47, 49, 51, and 55:


Conclusions
For VHF, the Y10-7-13 seems to have slightly better bandwidth; maybe 2 dB better gain at the lowest and highest channels 7 and 13.  For UHF the HD7698P and PR9032 are almost identical.

If you need both VHF and UHF in a single antenna, the HD7698P is about the best you can do. But if you need to optimize, then go with a separate Antenna Craft Y10-7-13 for VHF and an Antennas Direct 91XG or Channel Master CM-4228 for UHF, and use a VHF/UHF combiner such as the Tru-Spec Model UVSJ . (Don't use a full range splitter/combiner!)
